RAY 11 mm CUSTOM
Customizable static kernmantle rope for work at height and technical rescue
Petzl Custom can customize a RAY 11 mm rope. We offer the choice of color, length (up to 500 meters), and the option to add a manufactured sewn termination to one or both ends. The RAY 11 mm CUSTOM rope is packaged individually for a ready-to-go solution.
Detailed description
Description
- Choice of rope color and length:

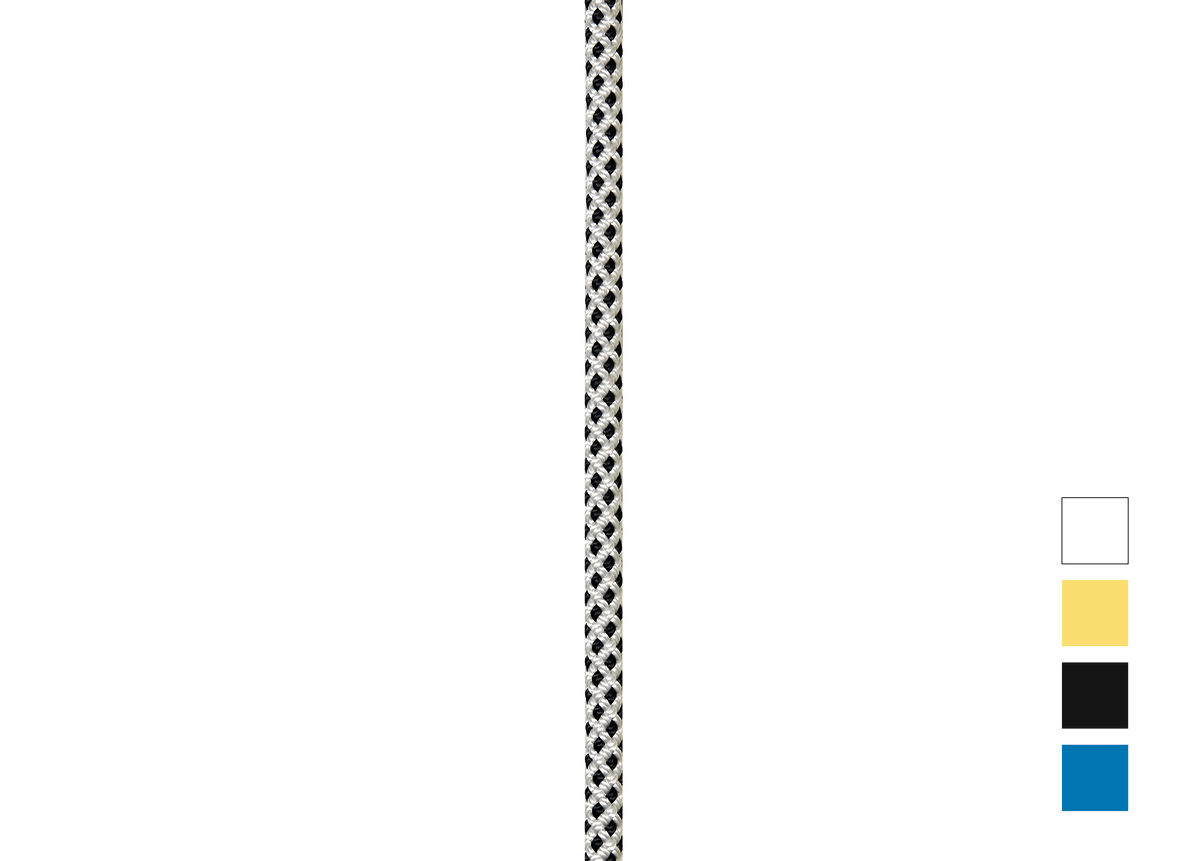

- Available in four colors: white, yellow, black, or blue

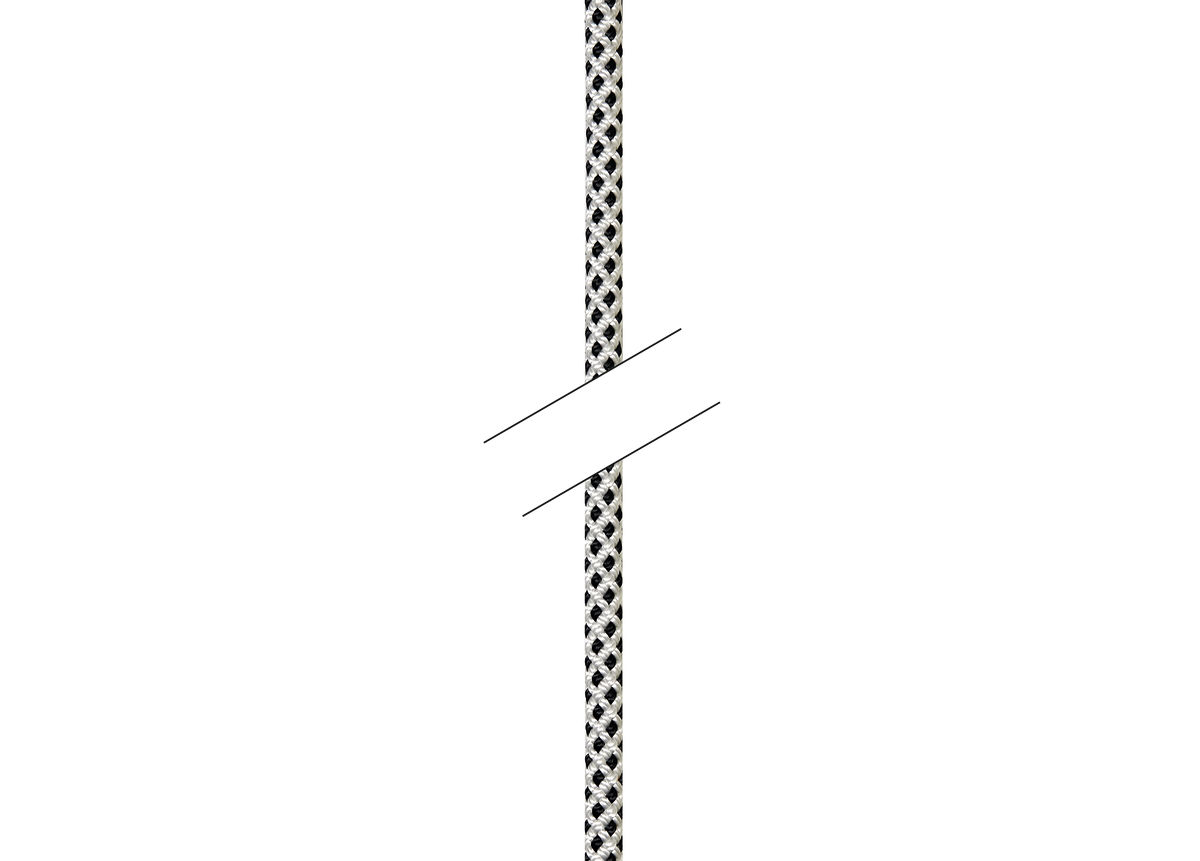

- Rope of a specified length can be ordered in one-meter increments, from 5 to 500 meters
- Choice of rope end terminations:
- Without termination

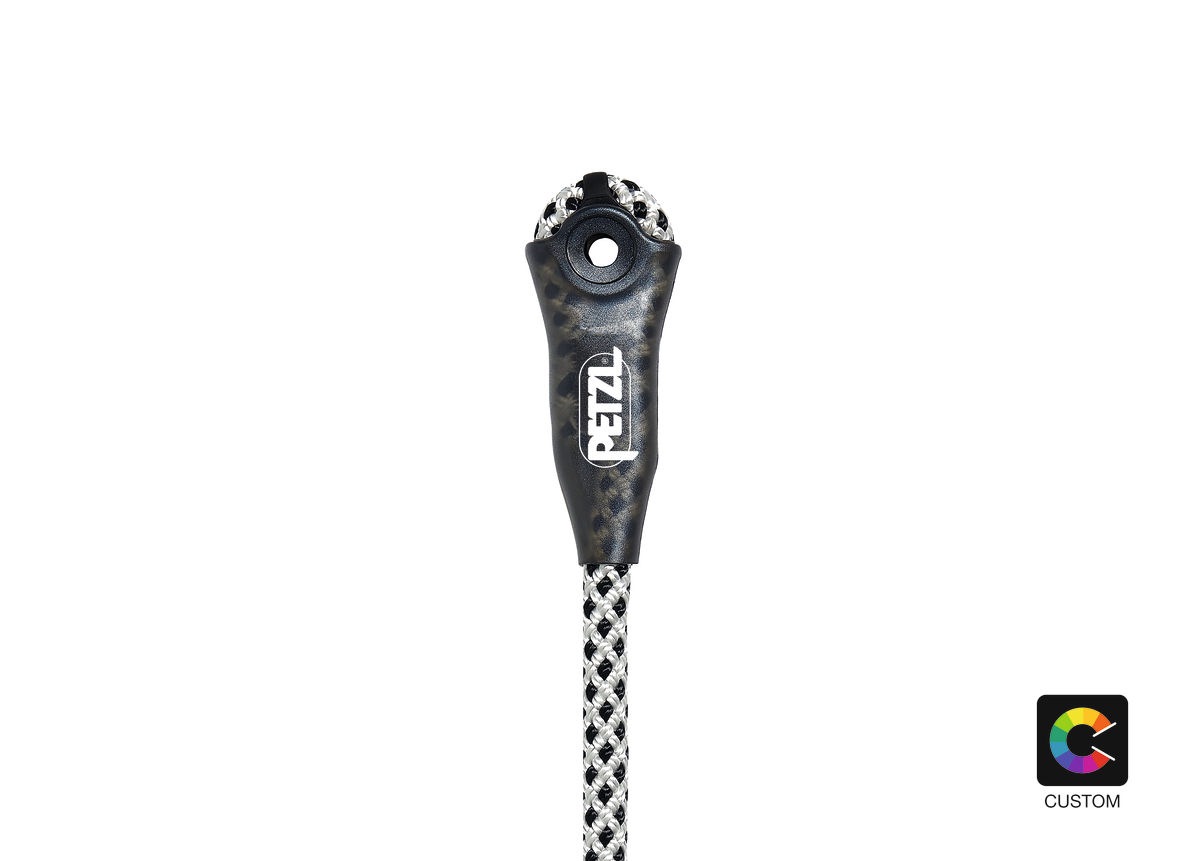

- With manufactured sewn termination at one end (available only in North America)
- With manufactured sewn termination at both ends (available only in North America); the second termination is a plastic sheath that can be used as a stop at the rope end
- Choice of packaging:
- Individual, in cardboard
- Individual, in a red BUCKET bag; bag volume (15, 30, or 45 liters) is determined by the length of the rope
- Certifications depend on choice of termination (more information in the Instructions for Use)
Specifications
- Diameter: 11 mm
- Material(s): Polyester
- Certifications: NFPA 1983 Technical Use, ANSI Z359.15, ANSI Z359.15, CI 1801.
- Weight per meter: 98 g
- Strength tied with figure-eight knot: 17 kN
- Strength with sewn termination: 30 kN
- Construction: 32 carrier
- Percentage of sheath: 39 %
- Static elongation under 1,35 kN load: 2,2 %
- Static elongation under 2,7 kN load: 3,2 %
- Static elongation under 4,4 kN load: 4,2 %
References
| References | R100XY |
|---|---|
| Customizable product, available on request | |
| Guarantee | 3 years |
| Inner Pack Count | 1 |
