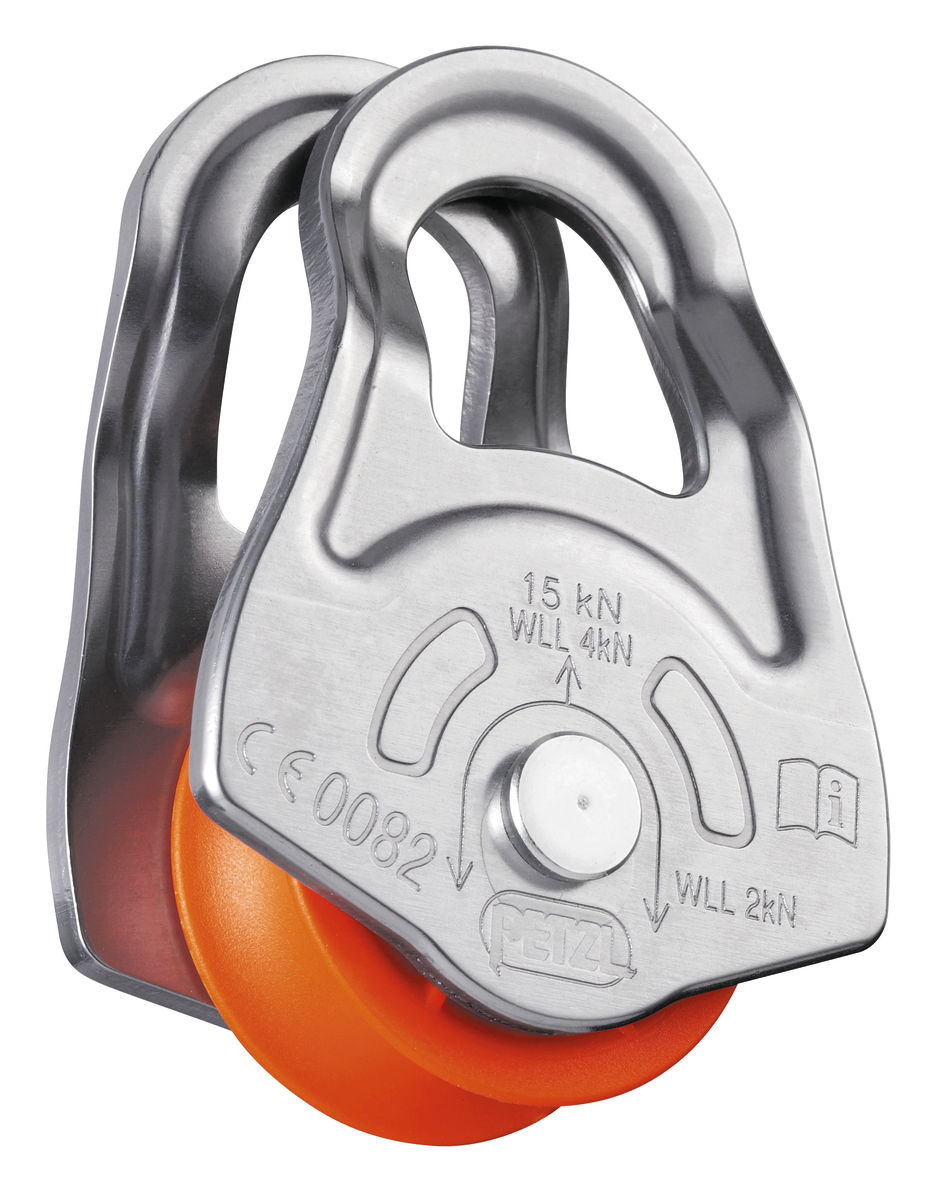

OSCILLANTE
Emergency pulley with moving side plates
The OSCILLANTE weighs practically nothing and can be used in crevasse rescue systems or improvised haul systems.
Detailed description
Description
- Quick and easy installation due to the swinging side plates
- Nylon sheave and aluminum side plates for excellent strength to weight ratio
Specifications
- Material(s): Aluminum side plates, nylon sheave
- Certification(s): CE EN 12278, UKCA, UIAA
References
| References | P02A |
|---|---|
| Weight | 42 g |
| Min. rope diameter | 7 mm |
| Max. rope diameter | 11 mm |
| Sheave type | Self-lubricating bushings |
| Sheave diameter | 25 mm |
| Efficiency | 71 % |
| Working load | 4 kN |
| Working load | On one rope strand: 2 kN |
| Breaking strength | 15 kN |
| Guarantee | 3 years |
| Inner Pack Count | 1 |
