TWIN RELEASE KIT Overview

The TWIN RELEASE KIT is Petzl's pre-assembled, ready-to-use 4:1 hauling and lowering system - ideal for work access and rescue in industrial environments. Simply pull the system out of the bag and attach it to a tripod or fixed overhead anchor point.

Overview

The ready-to-use TWIN RELEASE SYSTEM is designed to be attached to a tripod or fixed overhead anchor for vertical work access and rescue in industrial environments. It allows the user to easily lower and haul a load, most commonly in a confined space. It can also be used to tilt and orient a litter or tension a tripod.

With a 4:1 mechanical advantage, this system reduces user effort by a factor of four and can manage a heavy load up to 280 kg, or approximately 620 lbs. The system is releasable under load and provides additional lowering control when using the auxiliary brake on the TWIN RELEASE.

Additionally, the toothless cam preserves the rope and allows for a smooth transition from hauling to lowering. This kit's maximum working height is 15 meters (~50 feet) when fully extended.

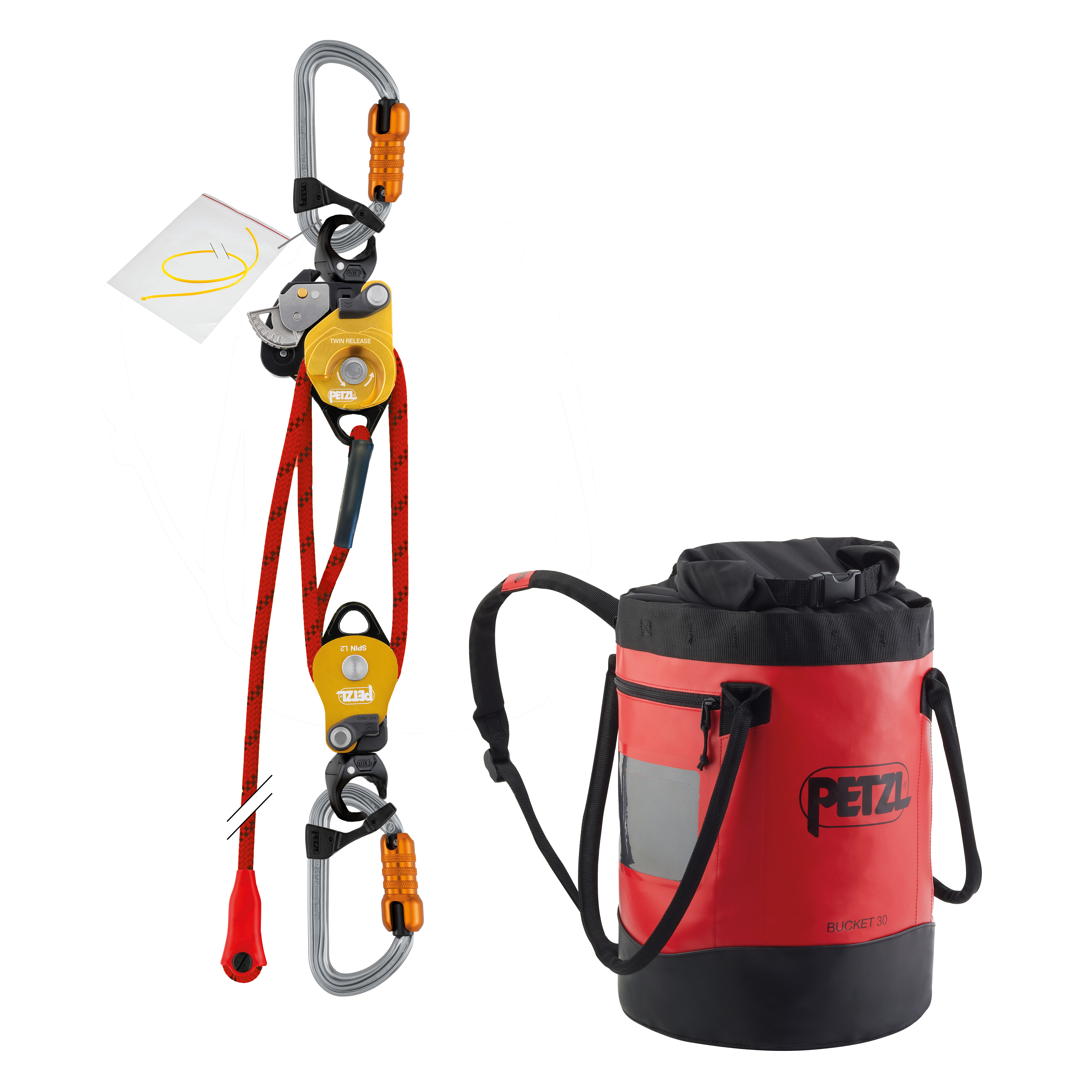

What's Included in the Kit?

• 1 TWIN RELEASE releasable double progress-capture pulley
• 1 SPIN L2 double pulley
• 1 AXIS 11 mm, 60-meter rope with two sewn terminations (one end sewn in the becket of TWIN RELEASE)
• 2 Bm'D carabiners with CAPTIV positioning bar
• 1 three-meter (~ten-foot) cord
• 1 30-liter BUCKET bag in red

Specifications:

• Material(s): Aluminum, stainless steel, nylon, polyester
• Handles loads up to 280 kg, or approximately 620 lbs
• Efficiency for one sheave: 89 %
• System efficiency: 66%
• Certification(s): ANSI Z359.4 Synthetic Rope Tackle Block
• SKU: P001EA00

Pricing:

• USD: $1,079.95
• CAD: $1,403.95

How to Purchase

To purchase a TWIN RELEASE Kit, inquire with your preferred Petzl Dealer or contact professionalsales@petzl.com
